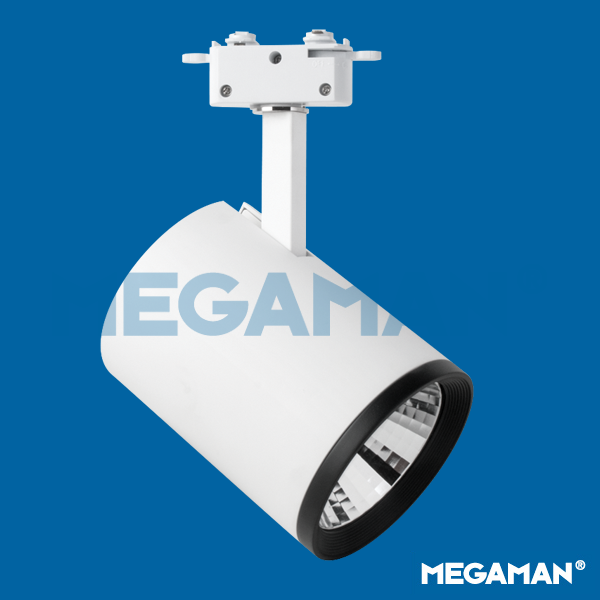

MARCO Track Lighting (Integrated) - Ultra RichColour
Integrated LED Luminaire
FTA70100v0-ru-45°
Specification Sheet
FTA70100v0-ru
| Electrical Data | |||||||||
| Voltage (V) | 220-240V | ||||||||
| Power Factor (λ) | > 0.9 | ||||||||
| Product Data | |||||||||
| Product Wattage (W) | 37 | ||||||||
| Beam Angle (°) | 45 | ||||||||
| Rotating Angle (°) | 330 | ||||||||
| Tilting Angle (°) | 90 | ||||||||
| Colour Temperature (K) | Warmwhite (3000K), Coolwhite (4000K) | ||||||||
| Colour Render Index (Ra) | Ra97 | ||||||||
| Colour | White (WH26) | ||||||||
| Materials | Aluminium | ||||||||
| Protection Class | Class Ⅱ | ||||||||
| Colour Consistency (SDCM) | ≤3 | ||||||||
| Dimmable | No | ||||||||
| Operating Temperature | -30°C to +40°C | ||||||||
| Application | Bus and Train Terminus, Hotels, Museums, Restaurants, Shop Lighting, Showrooms | ||||||||
| Performance Data | |||||||||
| Max. Luminous Intensity (cd) | 5400 | ||||||||
| Luminous Flux (lm) | 2600 [3000K], 2700 [4000K] | ||||||||
| Product Dimensions | |||||||||
| Diameter (mm) | 110 | ||||||||
| Height (mm) | 248 | ||||||||
|
Remarks Accessories:
|
|||||||||
