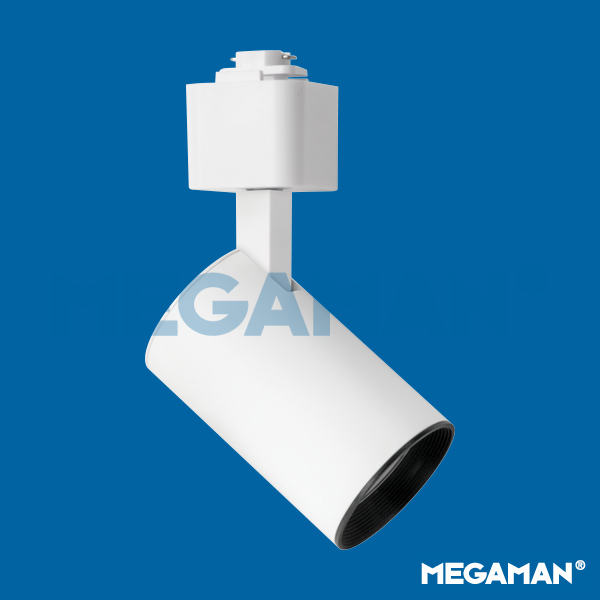

MARCO Mini Track Lighting (Integrated)
Specification Sheet
FTA70000v0-db
| Electrical Data | |
| Voltage (V) | 220-240V |
| Power Factor (λ) | > 0.9 |
| Product Data | |
| Product Wattage (W) | 12 |
| Beam Angle (°) | 24 , 36 |
| Rotating Angle (°) | 330 |
| Tilting Angle (°) | 90 |
| Colour Temperature (K) | Warmwhite (2800K), Coolwhite (4000K) |
| Colour Render Index (Ra) | ≥ Ra80 |
| Colour | White (WH12) |
| Materials | Aluminium |
| Protection Class | Class Ⅱ |
| Colour Consistency (SDCM) | ≤3 |
| Dimmable | No |
| Operating Temperature | -30°C to +40°C |
| Weight (g) | 170 |
| Application | Hotels, Museums, Restaurants, Shop Lighting, Showrooms |
| Performance Data | |
| Luminous Efficacy (lm/W) | 83 |
| Rated Life (hrs) | 25000hrs at L70 B50 at Ta 25°C |
| IP Rating | IP20 |
| Product Dimensions | |
| Diameter (mm) | 50 |
| Height (mm) | 160 |
|

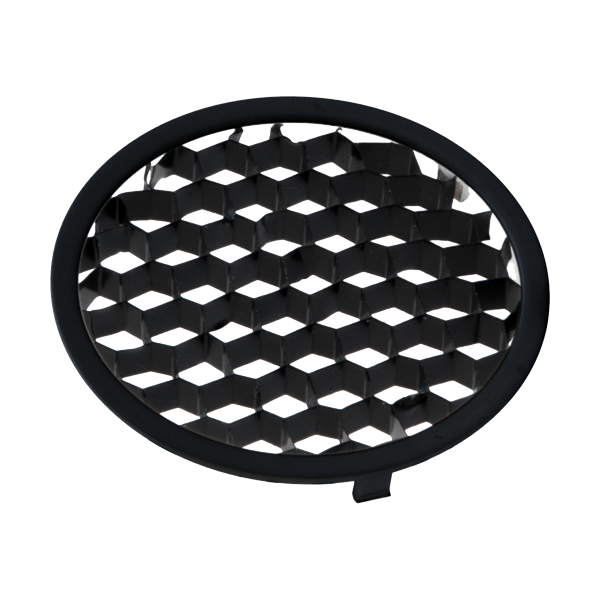

Remarks Accessories: LA10034 Honeycomb louvre
|
|
