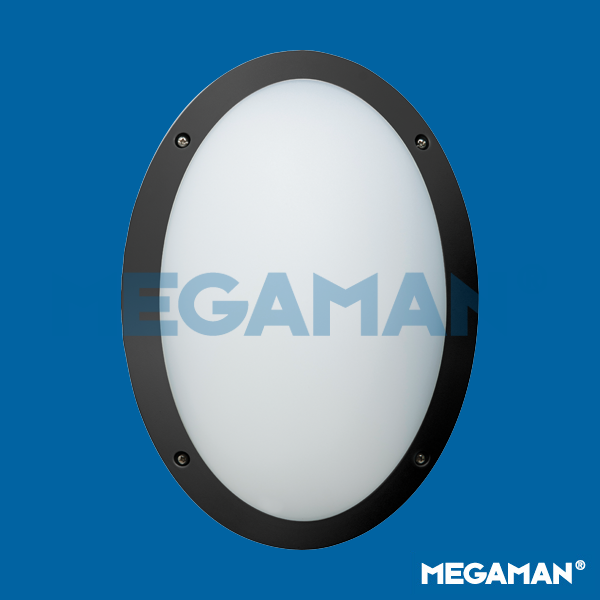

FONDA Bulkhead (Integrated)
Product Catalogue
Send to DIALux
Specification Sheet
F51300SM
| Electrical Data | |
| Voltage (V) | 220-240V |
| Power Factor (λ) | > 0.9 |
| Product Data | |
| Product Wattage (W) | 10.5 |
| Colour Temperature (K) | Warmwhite (3000K), Coolwhite (4000K) |
| Colour Render Index (Ra) | > Ra80 |
| Colour | Black (BK12), White (WH12) |
| Materials | Polycarbonate housing and polycarbonate diffuser materials |
| Protection Class | Class II |
| Dimmable | No |
| Weight (g) | 728 |
| Application | Corridors, Patios |
| Performance Data | |
| Luminous Flux (lm) | 800 |
| Luminous Efficacy (lm/W) | 76 |
| Rated Life (hrs) | 25000 |
| IP Rating | IP66 |

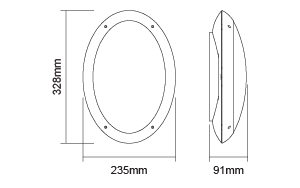

| Product Dimensions | |
| Length (mm) | 328 |
| Width (mm) | 235 |
| Height (mm) | 91 |
|
Remarks SV25 is for MEGAMAN® FONDA with sensor |
|
